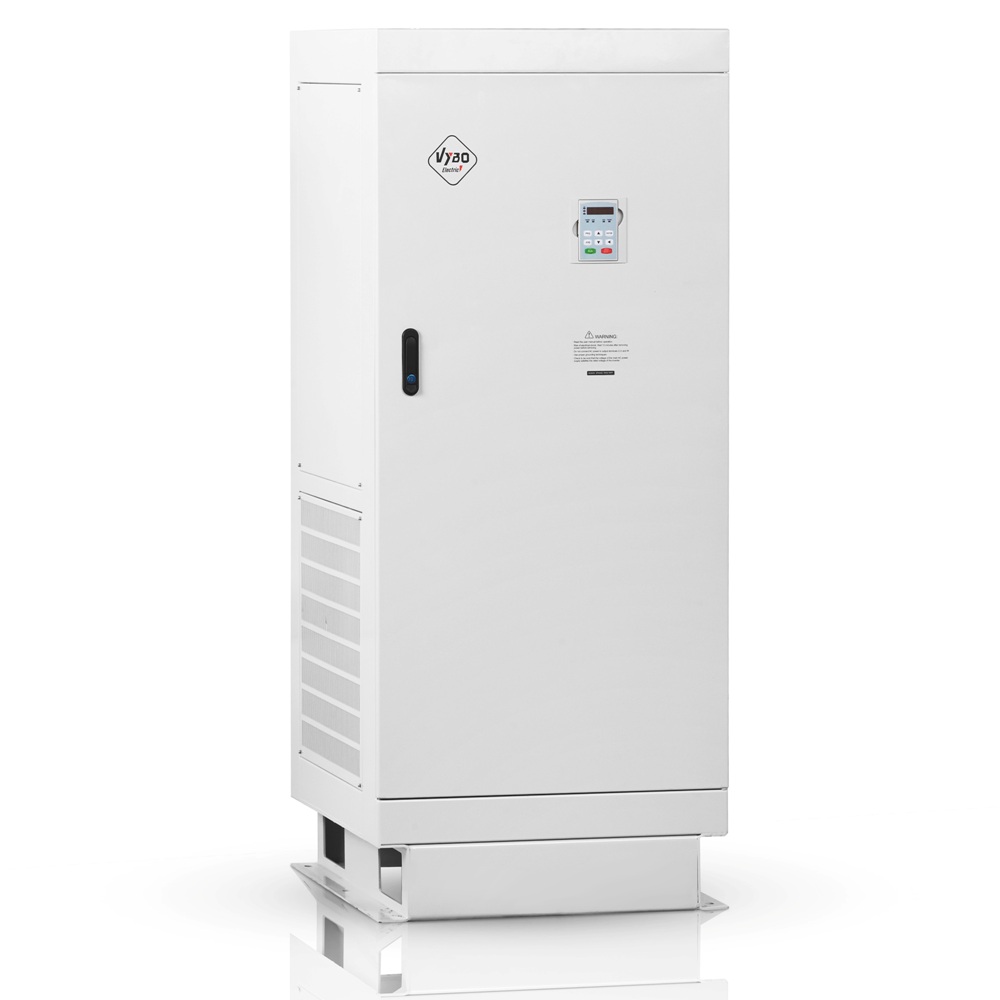

Variable speed drive 500kW V810-4T5000 (400V) in stock. It is available at favorable conditions. It is a state-of-the-art device for controlling electric motors at a professional level. It is characterized by high reliability and stability. Contact us for more information.
Variable speed drives 500kW V810 – price
Variable speed drives 500kW V810 – the price is very favorable, we supply it on request. These inverters are designed for the most demanding and complex professional applications and are suitable for all types. For a period of 3 seconds they manage an overload of up to 180% and for a period of 60 seconds an overload of 150% is possible. For this reason, we can say that they are the highest possible class of converters, mass-produced up to 1000 kW. These models can withstand high loads, which makes them special. The 500kW variable speed drives V810 has a very wide range.
Application areas of variable speed drives 500kW V810 400V
The 500kW V810 400V variable speed drives (VSD’s) are suitable for use in all industrial sectors, not only in simple but also demanding applications. To give you a better idea, we list several industries below where you can find our 500kW variable speed drives.
Application of 500kW V810 variable speed drives in United Kingdom
The 500kW variable speed drives V810 are used in numerous industries. Here are some application examples:
In light industry
- Food industry
- Printing
- Electrotechnical industry
- Textile industry
Use in heavy industry
- Automotive industry
- Mining industry
- Chemical industry
- Energy
- Metallurgy
- Aviation industry
- Construction
- Engineering
Variable speed drives 500kW V810 and its functions
- Variable speed drive power supply with three-phase voltage 3 x 400 V AC
- The control mode of the frequency converter is CLVC vector control with closed loop, open loop SVC vector control or V/F control
- Inverter output frequency 0.01 to 3200 Hz
- V 810 operates with a carrier frequency of 1 to 16 kHz
- V 810 has a built-in braking unit up to 18.5 kW, PID, PLC as standard
- Standard functions of AVR, JOG, timer, protection functions
- Safety function EMS STOP immediate stop
- Connection function of PTC protection or thermal contact of the electric motor
- Removable panel with the possibility of external installation up to 50 m (cable)
- V 810 has 8 selectable PNP or NPN digital inputs, including 1 high-speed pulse input of 100 kHz; 2 analog inputs -10 / +10 V; 0-10 V and 4-20 mA (or 0 to 20 mA).
- Outputs are 1 digital – high speed, 2 analog and 2 relay
- Physical RS 485 MODBUS interface integrated as standard
- MODBUS RTU communication interface; PROFIBUS-DP
- Built-in port for connecting PG cards (encoders, resolvers, etc.)
- Standards EN/IEC 61800-3: 2017; C1 suitable for 1st environment; EN/IEC 61800-3: 2017; C2, which is suitable for the 1st environment;
Why VYBO Electric 500kW V810 variable speed drive?
If you are wondering whether the V810 type variable speed drive with a power of 500kW is right for you, in the next text we will show you when you should get such a device:
– if you need to optimize your operation effectively
– if you need a reliable variable speed drive with high overload capacity
– if you work with higher powers in operation
– if you want to use many functions
– if you want to get the best price-performance ratio
– if you need a converter quickly anywhere in the United Kingdom
